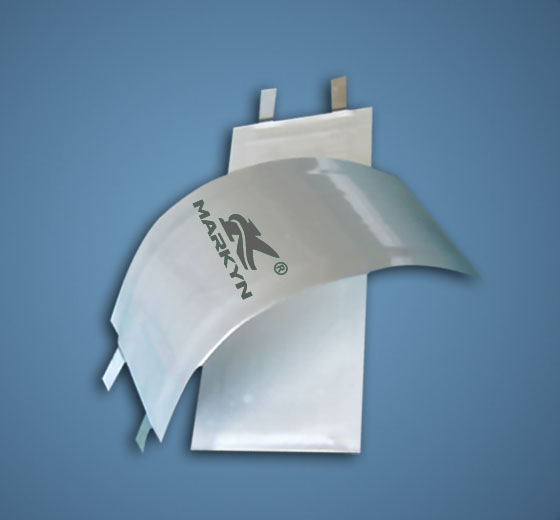

弧形聚合物電池可按客戶要求定制，它是基安彼電池的拳頭產品，它具有輕、薄、可彎曲，自放電率低，儲存壽命長等特點。
特點:
弧度: π/6~3π/2;
寬: 8mm~50mm;
厚度: 0.5mm~ 10.0+/-0.5 mm
容量: 8mm~5000mAh
需要GMB201024電池規格書,請點擊這里
應用:
i-watches, 運動手環，智能手表，智能腕表

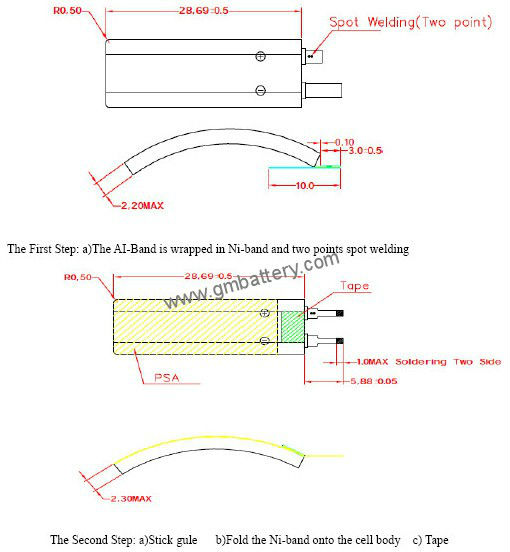

電池形狀:
產品列表:
| TYPE |
Rated Capacity | Thickness | Width | length |
Nominal Voltage | Charge current | Charge time | Discharge current |
| (mAh) | (mm) | (mm) | (mm) | (V) | (mA) | (H) | (mA) | |
| GMB201021 | 23 | 2.0 | 10 | 21 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB201024 | 26 | 2.0 | 10 | 24 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB201030 | 41 | 2.0 | 10 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB202580 | 270 | 2.0 | 25 | 80 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB205080 | 550 | 2.0 | 50 | 80 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB252090 | 260 | 2.5 | 20 | 90 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB252270 | 320 | 2.5 | 22 | 70 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB254045 | 300 | 2.5 | 40 | 45 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB233045 | 200 | 2.3 | 30 | 45 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB233070 | 370 | 2.3 | 30 | 70 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB242269 | 340 | 2.4 | 22 | 69 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB251341 | 90 | 2.5 | 13 | 41 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB251343 | 85 | 2.5 | 13 | 43 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB201030R | 43 | 2.0 | 10 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB201021R | 22 | 2.0 | 10 | 21 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB200830R | 32 | 2.0 | 8 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB251341R | 95 | 2.5 | 13 | 41 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB501215 | 50 | 5.0 | 12 | 15 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB361215R | 40 | 3.6 | 12 | 15 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB622238 | 450 | 6.2 | 22 | 38 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB451937 | 250 | 4.5 | 19 | 37 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB502030 | 240 | 5.0 | 20 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB302547 | 320 | 3.0 | 25 | 47 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB302436R | 220 | 3.0 | 24 | 36 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB382030 | 190 | 3.8 | 20 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301009 | 12 | 3.0 | 10 | 09 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301009L | 8 | 3.0 | 10 | 9 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB502025 | 180 | 5.0 | 20 | 25 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301240 | 110 | 3.0 | 12 | 40 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB241240R | 80 | 2.4 | 12 | 40 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB250816R | 13 | 2.5 | 8 | 16 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB501320 | 75 | 5.0 | 13 | 20 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB251215 | 20 | 2.5 | 12 | 15 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB251515R | 28 | 2.5 | 15 | 15 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB153030R | 85 | 1.5 | 30 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB142828R | 65 | 1.4 | 28 | 28 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB233080R | 560 | 2.3 | 30 | 80 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB253030 | 180 | 2.5 | 30 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB255050 | 500 | 2.5 | 50 | 50 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301013 | 14 | 3.0 | 10 | 13 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301017 | 16 | 3.0 | 10 | 17 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301025 | 43 | 3.0 | 10 | 25 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB301030 | 62 | 3.0 | 10 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB303030 | 230 | 3.0 | 30 | 30 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB303040 | 320 | 3.0 | 30 | 40 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB303048 | 420 | 3.0 | 30 | 48 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB303540 | 430 | 3.0 | 35 | 40 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB305050 | 750 | 3.0 | 50 | 50 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB323540 | 400 | 3.2 | 35 | 40 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB402528 | 230 | 4.0 | 25 | 28 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB451124 | 65 | 4.5 | 11 | 24 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB501320 | 75 | 5.0 | 13 | 20 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
| GMB541835 | 280 | 5.4 | 18 | 35 | 3.7 | 0.5C | 2.5～3.5 | 0.5C |
Note: 1、Ended with "R", it is curved type;
2、Contact our engineer if you need high density type(540WH/l) by info@gmbattery.com
注意：1、型號后面帶“R"的為弧形電池；
2、如需高容量,與我們的工程師聯系,電子郵件; info@gmbattery.com.
l 能量密度高， 容量高出同行業10%~30%;
High energy density(540WH/L), capacity is 10%~30% higher than the present battery industrial;
l 日產量10萬只;
Daily production capacity is up to 100K due to self-developed automatic machines and effective engineering team ;
l 安全性高, 專為可穿戴式設備設計.
l High Safety. Specially designed for wearable devices.
l 極片韌性高, 并采用不同溫度, 多次成形, 使電池長期穩定;,
l To guarantee the long terms stability, Both anode and cathode blades are specially made for higher tenacity, and bent at 5 levels in different temperature.
